p5.js WebGL Improvements

Published April 16, 2019

New features debugMode() and orbitControl() give a clear sense of 3D space.

I participated in Google Summer of Code in 2018, contributing to the open source library p5.js on their WebGL (3D Graphics) Implementation. p5.js is an open source javascript library for creative coding started by the Processing Foundation with the express goal of ‘making coding accessible for artists, designers, educators, and beginners.’ With this in mind, I proposed and made several changes to the Camera API and added several debugging features to aid the beginner programmer’s transition from working in 2D to 3D.

Below is a copy of a Medium article summarizing this work.


Google Summer of Code 2018

Mentored by Kate Hollenbach

Imagine drawing a circle on a piece of paper. What steps do you take and in what order? Place the pen down, smoothly trace out an arc until the the shape is complete, and lift the pen. Now imagine drawing a sphere. It’s probably a good idea to start by drawing a circle, but what then? If you’ve ever taken a drawing class, you may start by shading: imagine where the light is coming from and where it would cast shadow, then blend between regions of shadow and highlight. Or, perhaps you draw your sphere on a surface, giving it somewhere to cast its shadow and adding perspective to your drawing. Whatever your approach, drawing three dimensions on a flat surface requires a great deal more thought.

For someone learning to program using p5.js, “drawing” in 3D can be daunting. In addition to understanding coding fundamentals, you must understand how the 3D coordinate system maps to a 2D screen, what the “camera” is and how it facilitates this mapping, and what tools are required to make depth visible. p5.js’s implementation of the WebGL (3D) system does a great deal to reduce this barrier-to-entry by providing default cameras, centering all new shapes on the canvas, and providing a normalMaterial() function, which allows the user to build and test ideas without implementing lighting. As part of Google Summer of Code 2018, Adil Rabbani and I worked along with our mentors Stalgia Grigg and Kate Hollenbach to make using p5.js WebGL mode more functional and easier for beginners. Adil implemented missing 3D primitive shapes and I expanded options for interactivity and the camera in WebGL mode.


p5.Camera

In 3D graphics, what we call a “camera” is a set of mathematical operations that converts points in 3D space to the 2D representation we see on screen. In essence, it does the same thing as a real camera, only using math instead of a lens. My project expanded options for creating and controlling cameras in p5.js so that a beginner coder could more fully rely on this analogy to understand what is happening on screen.

In practice, it’s now possible to store and manipulate camera objects with a number of new camera methods based on real-world camera movements: pan, tilt, move, among others.

let cam;
function setup() {
createCanvas(100, 100, WEBGL);
normalMaterial();
cam = createCamera();
}
function draw() {
background(200);
// look at a new random point every 60 frames
if (frameCount % 60 === 0) {
cam.lookAt(random(-50, 50), random(-50, 50), 0);
}
rotateX(frameCount * 0.01);
box(20);
}

Interaction

Human depth perception is based on many sensory and contextual clues: shadows, sound, certain objects being in front of, or behind others, and lived experience (e.g., we understand an airplane in the sky to be larger than a bird, despite that their sizes appear similar; this lived experience makes us understand that the airplane must therefore be further away). However, when we start a new p5.js sketch in 3D and are faced with a blank canvas, all of these clues are absent. So, how are we to perceive depth? How do we know which way the camera is facing when there are no objects present? If there is movement in the sketch, how do we know whether the camera is moving, or the shapes in front of the camera are moving?

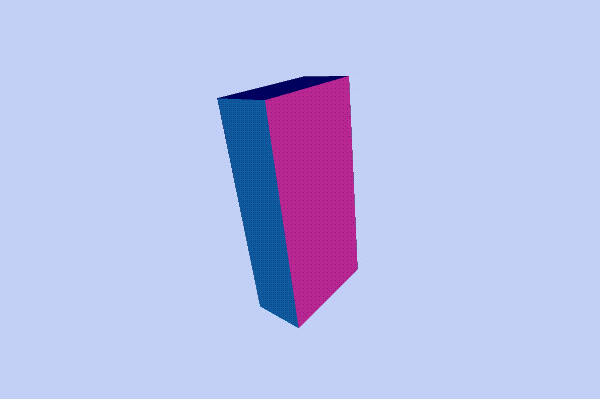

Are we moving or is the box moving? Which way is up?

In creating and debugging 3D sketches, we have two options to answer these questions: looking at our code or looking at our sketch. My project attempts to make it easier to answer these questions (and any others that come up) by providing options for interacting with the sketch.

debugMode() provides a frame of reference for our sketch, allowing us to perceive depth more easily:

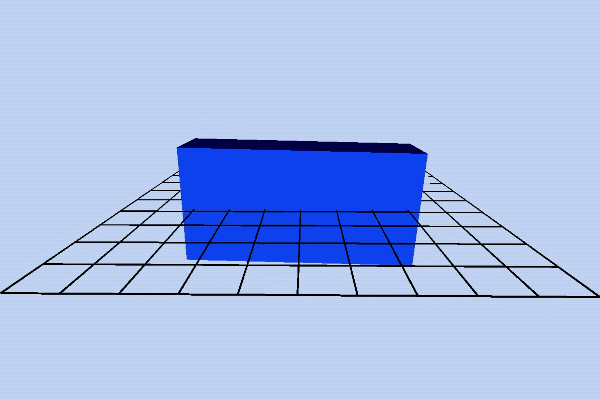

Orientation and movement are easier to identify with debugMode().

And an expanded orbitControl() provides more options for a user to interact with the sketch:

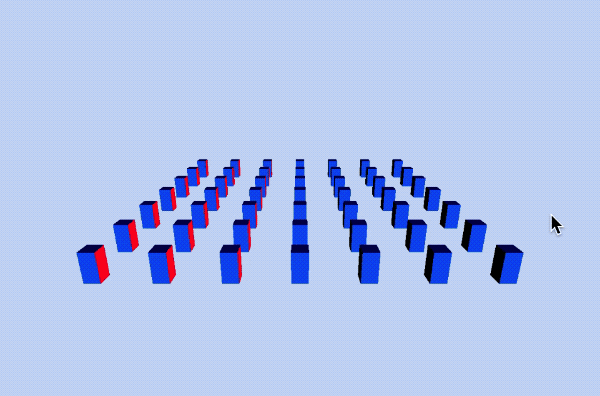

orbitControl() provides more options for a user to interact with the sketch.

Working with my mentor, Kate Hollenbach, and within the larger p5.js community was an incredible education in coding and in open-source. My hope is that this project will help more people feel comfortable using p5.js WebGL mode and trying out new ideas in 3D!

For further details about the project, see this post on the p5.js Github Repo.
